Gland plates MC 3/7, MC 25/27, MC 35/37 and MB 5/11 are metal reinforced cable gland plates with IP66/67 classification. All types have a new design which gives excellent protection for separate cables when cables are bended effectly. The design gives absolute protection against dust and strong jets of water and even immersion between 0,15-1 m.
Product Data
IP66/67 dimensions
Description
Width (A) mm
Lenght (B) mm
Height (C) mm
Dept 1 (D) mm
Dept 2 (E) mm
MC 3/7
222
92
76
53
33
MC 25/27
222
92
43
30
23
MC 35/37
222
92
43
30
23
MB 5/11
147
57
42
26
23

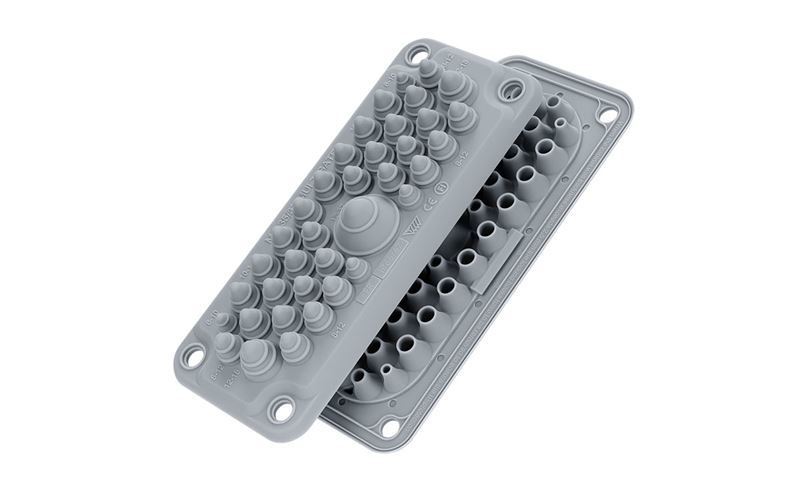

MC 35/37 RAL 7035 UL94V-0 Bulk packed Endüstriyel aksesuarlar alanında uzman kadrosu ile tüm ihtiyaçlarınıza ve bütçenize uygun çözümler sunmaktayız. Size bir telefon kadar yakınız.TRLB-105043
